Superform/V

Axial lead former for vertical mounting.

Category:

Description



 Superform/V is a machine made for cutting and bending axial taped components for vertical mounting.

Technical features
Production rate: up to 40,000 pcs/hr

7915.030: Motor unit for Superform, 220V-50/60Hz
7915.031: Motor unit for Superform, 110V-50/60Hz
7915.182: Feeder CS30 for loose axial components
7915.185: Tape Reel Holder arm BR6

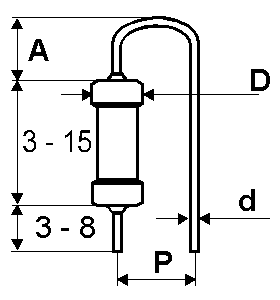

P d A D
fix min max min max max
7915.101B standard model 2.54 0.5 0.8 2 6 3
7915.101C 3.8 0.5 0.8 2.5 6 5
7915.101D 5.08 0.5 0.8 3 7 8
7915.101E 7.62 0.5 0.8 4 7 10
7915.091A 3.8 0.8 1.3 4 9 5
7915.091B 5.08 0.8 1.3 5 9 8
7915.091C 7.62 0.8 1.3 6 9 10
